Pea Soup Smoke Machines
The smoke machine specialists

BUY SECURITY SMOKE MACHINE SYSTEMS

Portable Security Smoke Screen

The world's only portable smoke security system!



No installation needed - instant property protection

• No existing alarm system necessary
• Extremely simple to set up and operate
• Armed/Disarmed wirelessly up to 200m away
• Very powerful security fog production: 700m3/min.
• Dual technology detection minimises the risk of false activation.
• Compliant with BS7939 and other European and American standards
• SMS text message status and activation alert (optional)

Traditionally, security smoke has been designed for fixed installations and permanent protection.
Rapid Deploy is the result of a need for a ‘plug and play’ Security Smoke System. This system can be taken to a site, plugged in and after a short heat up time is ready to begin protecting property.
Equipped with sophisticated Dual-Tech detection and data-logging circuitry, Rapid Deploy can be taken to a problem site and set up in seconds.
Arming and disarming couldn't be simpler through the use of a radio key-fob and audio signals.
The unit is robust and compact, and is designed to ensure simple and problem free installation and operation.

Features:
• Very competitive pricing
• Easy installation
• Compact, rugged casing
• Floor mount
• BS7939 compliant
• £10 million product & public liability insurance
• Produces 700m3 smoke per minute
• On-Board event log
• Optional external UPS for off-mains operation

Operation:
• Radio Key fob arm/disarm
• Push Button programming
• Audio tones and LED display to indicate status
• Simple smoke control



Construction:
• Rugged & compact metal casing
• Available with flight case for transport

Data:
Rapid HP:
• 36(H) x 20(D) x 34(W) cm
• Weight 20 kg

Radio Key Fob:
• Rolling code Keeloq® Encryption
• European Frequency 433.92MHz

Smoke Output Dimensions Weight Power Rating Particle size
700m3 / min. 36 x 20 x 34 cm 20kg 230 or 110v, 1.2kW 0.9 micron, MMD

 We send these units worldwide


Basic Package
Includes 1 x Rapid Deploy Smoke Screen generator, 2 x Arm/Disarm Radio Key Fobs, 2 x fluid consumables (1 installed), 20m extension lead, 1 x Deployment Pack (instructions)
Price: £995.00 ex. VAT.


Advanced Package
Allows the smoke screen unit to send an SMS text message to a keyholder of its status, including confirmation of activation.
Includes all components of Basic Package (above) with integrated GSM signalling board and SIM card.
Price: £1370.00 ex. VAT.


Additional fluid bladders
£24.95 ex. VAT.

Technical and siting assistance – If you require assistance with the set up and deployment of Rapid Deploy, telephone our office and we will be happy to help.
Police and Fire Notification – It is important that every deployment of Rapid Deploy is notified to the relevant authorities. To assist you, you will find a master copy of a notification sheet in the deployment pack.

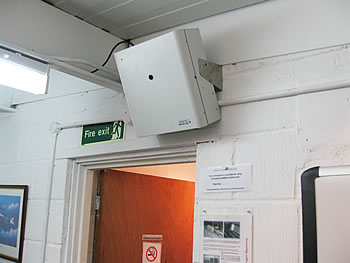

Available for use with existing alarm systems: The Rapid ELM

Smaller companies benefit from the fantastic value for money represented by our Rapid ELM.
The ELM produces approximately 300 cubic metres of smoke per minute, and is suitable for all small offices, shops,
storerooms, domestic applications, garages, etc.

The RAPID ELM integrates with existing alarm systems and provides instant protection, producing huge volumes of smoke in a matter of seconds.

PDF info sheet

Price: £645.00 ex. VAT.

Our Guarantee

Pea Soup Smoke Security Systems are manufactured to comply with ISO9001, designed and manufactured under ISO9001 for the 'Design and manufacture of security smoke generators'.

Pea Soup Smoke Security has been rigourously tested. It complies fully with the requirements of BS7939 and is CE marked. It meets the requirements of UL (United States) and ASI (Australia). Each Pea Soup Smoke Security System above carries a definitive 'non-contamination' guarantee and full public liability cover.

How it all works...

All Pea Soup Smoke Security Systems produce a smoke-like effect (it's correctly described as fog) using a specially formulated, pharmaceutical grade glycol solution. The liquid is forced, under pressure, through a precision engineered steel heater block. The liquid turns first to vapor and then condenses as it exits the block to form a distinctive, white smoke-like effect.

The 'smoke' is formed by an optical effect created by billions of microscopic particles suspended in the air. Each measuring about 0.2 microns in diameter they remain airborne for hours, settling at a rate of less than 1cm per hour. This ensures that there is no residue and no consequent contamination. The quality of the heater block guarantees are smoke effect that is non-toxic, non-conductive, non-corrosive and definitely non-contaminating. Generators using the same type of heater block are used by BNFL (British Nuclear Fuels Ltd) to test and calibrate HEPA filters. Pea Soup Smoke Security machines are able to consistently produce this high quality smoke effect by combining precision engineering, state of the art electronics and 35 years of practical experience.

Frequently Asked Questions

Q. Will the smoke damage my property?
A. If the Pea Soup Smoke Security machine is installed and operated to the manufacturer's specifications then there is no possibility of damage or contamination - we guarantee this. Systems have been used to provide protection to a wide variety of sensitive property including high value clothing, consumer electronics and communication equipment.

Q. What about computers?
A. Pea Soup Smoke Security units are used extensively to protect computer equipment. The dry nature of the smoke ensures that no deposition occurs on computer equipment. In addition, the liquid itself is non-conductive and non-corrosive. Tests have been conducted by ourselves and a major international electronics manufacturer, which show that LCD modules and PCBs with surface mounted ICs are unaffected even when the pure smoke fluid is literally poured over them.

Q. What do the insurers say?
A. Insurers throughout the UK now recommend and specify smoke security systems. A number are also offering financial inducements to install. These include cash-back or premium reductions

Q. What about the Police and Fire Brigade?
A. In general the Police see the use of Pea Soup Smoke Security as a positive move against intrusive criminals. Many Crime Prevention Officers throughout the country are happy to recommend the system. The new ACPO guidelines make provision for the use of a security smoke generating system. Fire Brigade personnel appreciate the need for such systems and have stated that, as long as systems are installed as per the code of practice, then they have no objection.

Security Smoke - Design

Years of experience combine with the latest hi-tech computer technology in our current range of smoke generators.

The compact and robust design and impressive smoke production make these units an ideal choice for many security applications.

Security Smoke - Insurance

All Pea Soup Smoke Security users are provided with public and product liability insurance cover. This cover combines with the extended warranty and reflects the manufacturer's confidence in the system.

To date there has never been an insurance claim involving a Pea Soup Smoke Security System.

Security Smoke - Quality Assurance

Pea Soup Smoke Security Systems are designed and manufactured under ISO 9001. They are fully EMC compliant and CE marked. They comply with BS 7939 and have accreditation from UL (Underwriters Laboratory).

Pea Soup Smoke Security Systems offer
THEFT PREVENTION

12V DC Car Security Smoke Screen

Works in conjunction with your vehicle's alarm to fill the vehicle with smoke so that valuables and the vehicle itself cannot be stolen.
  • Physical theft prevention for your vehicle
  • 12V DC powered - also 24V option
  • High smoke output

  • Leaves no residue
  • 3 second heat-up time
Ships worldwide.   Video.     More info...
