 Internal
timer
Timer control is via the control panel on the machine. The
fog time can be exactly adjusted in seconds, the interval
between fog production in minutes and the output in %.

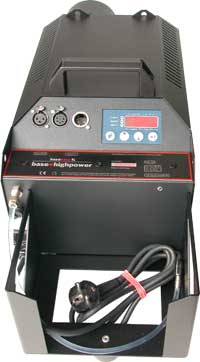

Control panel
The control panel has an LED display and uses simple controls
for easy operation. The panel is covered in a membrane to
protect it against dirt.
Remote Control
The machine can be controlled via 'analogue' (0 - 10 V) via
a lighting desk or via XLR remote control (optional extra)
or even wirelessly (optional extra). This connection is via
3 pin XLR plug.
DMX 512 as standard
The unit can be controlled via DMX 512.
The connection is a standard 5 pin XLR plug. The DMX start
address can be adjusted and saved via the control panel.
Fine fog output
adjustments of
Digital control allows you to adjust the pump in 100 steps
of 1% -- the output can be adjusted from 0 - 99%.
Connector for
external fan
An external fan (with maximum 800 watt consumption)
can be connected to the unit. Once connected to the machine,
the fan can also be adjusted via DMX. The machine then uses
two following channels at the desk.
Features
- DMX as standard, analogue and stand-alone-mode
- Internal timer
- Fog output adjustable in steps of 1% (0 -
99%)
- Continuous output
- Easy handling
- Powerful output
- Manufactured in Germany
Specifications
- Power: 2.6kW, 230v only
- Warm up time: 7 minutes
- Fluid consumption at 100% output: 240ml per
minute
- Fluid consumption at 50% continuous output:
70ml per minute
- Fluid tank capacity: 5 litres
- Fog output projection: 15 metres max.
- Continuous output at 50%
- Dimensions: 58cm long x 23cm wide x 35cm
tall
- Weight without fluid: 20kg
|
