The
DRAGON is our highest quality
smoke
generator is well suited to applications where continuous,
high
smoke
output is required with low fluid consumption. There
is no compromise in the quality of components in this unit.
It generates the most persistent water-based smoke of any
smoke machine available.
Ideal for:
fire training
leak testing
special effects
spray booth clearance testing
air flow visualisation
installations
We ship worldwide
Made in Britain under ISO:9001 QA
Features:
Can produce high quality smoke continuously
at maximum output
Variable output control (0 -> 100%)
Can produce very persistent smoke (Fluid
A), quick dispersing
smoke
(Fluid B) or medium hang-time smoke (Fluid C) as required
Efficient fluid use (50ml per minute,
100% output)
“It’s beautifully made, works
well and from what we have seen here makes extremely
efficient use of the fluid.” Fire Professional Magazine
Three types of fluid
available for use in the Dragon:
Fluid Type
Smoke Hang Time (at 20C, approx)
A
1.5 hours +
B
1 - 3 minutes
C
25 minutes
Construction:
Precision, machined
heat exchanger, guaranteed for life!
Integral 2 litre reservoir, with sightglass
Fully digital temperature control
Solid state switching

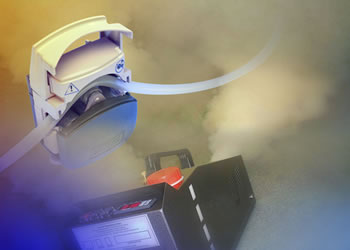

High quality pump,
truly continuous rating
5 metre wired remote control (wireless
remote option)
Smoke particle size using Dragon
Fluid A (very persistent) is small - 0.2 - 0.3 microns (compared
to an average of 5 - 30 microns for typical 'entertainment'
smoke machines).
General Specification (approx.)
PS27 DRAGON
Size (L
x W x H)
55cm x 23cm
x 29cm
(21.5" x 9" x 11.5")
Weight
13.5kg (30lbs)
Heat exchanger wattage
2,200W
Power Supply
230v, 50hz
(110v, 50/60hz optional)
Warm up time from cold
5 mins
Duration of full 2 litre (½
gallon) fluid tank at 100% output
How does
the DRAGON differ from other water based smoke machines?
Continuous & constant 100% high output - fog output
does not 'ramp down' to maintain continuous fog like on
most machines.
The DRAGON maintains full output volume, continuously.
All components have been chosen for quality and reliability.
The heat exchanger is guaranteed for life and the pump is
truly 100% continuously rated.
Particle size (consistently 0.2 micron) using fluid A
is the smallest of any fog machine in the world. This means
low fluid consumption, long hang time (fluid A) for thick
fog and no discernible residue.
The DRAGON is in daily use in fire training centres, universities,
building sites, theme parks, power stations, navy ships, art
installations, wind tunnels and spray booths all over the
world.
Wireless remote control option
available upon request
Customer comment from Elk
Grove Fire Dept, California:
"We love the machines and are very impressed with them.
We have two machines and they get used very heavily every
week for ship board, stuctural, confined space and rescue
training. The smoke produced by them is awesome."
Each PS27
Dragon unit comes with 5m wired remote control and 2.5 litres
of smoke fluid.
A 'de-rated' version of the 110v unit is available for
US customers who need to be able to plug the unit in to a standard domestic
US mains socket. The unit draws 1.6kW (16A) instead
of 2.2kW (20A).
We ship worldwide - contact
us for shipping price if outside UK
Specification as above except internal fluid tank references.
The PS27ER version of the Dragon comes with an external
fluid pumping inlet and 5 metre fluid pipe which allows
for the remote location of the (supplied) 25 litre fluid
tank.
Ideally suited for installations in theme parks, museums,
art installations, galleries, etc. where very low maintenance
is required.
If a wireless remote is required on this model (as
per unit in photo at left), please contact
us to order.
Custom timer control remote also available.
Auto-airline compressed air purge fuction option available.
Contact us for info.
All the features of the Dragon PS27ER above, but with
all electrical and mechanical elements housed in an
IP65 rated weatherproof enclosure.
Specifically designed for ourdoor
use in both theme parks or visitor attractions, as well
as in hostile or wet fire training environments, this
IP65 rated version of the Dragon comes with an external
fluid inlet and 5 metre fluid pipe which allows for
the remote location of the 25 litre fluid tank (provided)
for easy and infrequent refilling.
Whether for outdoor installations in a theme park ride,
visitor attraction, art installations, billboard, etc.
the PS27IP excels where a high quality, 100% output
rated, low maintenance is required.
Timer control and auto airline purge options are available
on this model, please contact
us to order.
Dragon
Smoke
Fluid
Fluid Type
Smoke Hang Time (at 20C, approx)
A
1.5 hours +
B
1 - 3 minutes or less
C
20 minutes
DRAGON
PERSISTENT SMOKE FLUID TYPE A
PS101
Single 5 litre container
PS101D
205 litre drum
(*this is a heavy item weighing 235kg+ and is delivered on a pallet)
.
DRAGON
QUICK DISPERSING SMOKE FLUID TYPE B
PS102
5 litre container
PS102D
205 litre drum
(*this is a heavy item weighing 235kg+ and is delivered on a pallet)
.
DRAGON
MEDIUM PERSISTENCY FLUID TYPE C
PS103
5 litre container
PS103D
205 litre drum
(*this is a heavy item weighing 235kg+ and is delivered on a pallet)
.
Here you see the PS27 Dragon in operation with
ducting adaptor and 25mm silicon lined ducting hose attached.
For Entertainment Applications...
You'll find Dragon smoke machines in use by special effects teams in most major motion pictures and film franchises and also at a wide variety of installation locations including: the famous Golden Teapot of Derry, Legoland Windsor, Center Parcs, Alton Towers, National Space Centre, Shanghai Disneyland, trade fairs, Lullingstone Castle, Hampton Court Flower Show, Loch Ness Exhibition Centre, inside a 4.5 metre tall animatronic Man Engine ‘Best Arts Project’ 2017, the largest mechanical puppet ever constructed in Britain... and once even a couple of Dragon units were in the famous corner window of Selfridges on London's Oxford Street for several weeks!
DUCTING ADAPTORS
& HOSE
Ducting adaptors
25mm silicon lined flexible ducting hose
25mm neoprene flexible ducting hose
Available in three diameters:
25mm
50mm
75mm
A steel ducting adaptor (shown left) attaches to the front of the machine
to secure the position of the ducting hose inlet allowing
smoke to be positioned precisely, in hard to reach places, a distance away from the machine itself,
etc.
All our ducting hoses are internally lined to be
smooth, thereby reducing frictional losses and smoke
particle impaction.
When ducting smoke, you are restricting
the smoke particles movement in a limited space and so deposition in the hose over time
is inevitable with any machine. But by using a Pea Soup
smoke machine and this type of hose, deposition is minimised.
25mm Ducting
PSD251
25mm diameter heavy duty ducting adaptor
PSD252
25mm silicon lined flexible ducting
x 2 metre length Stays rigid - ideal for clearance
and air flow tests use as a 'wand'. Silicon lined to resist
heat from the smoke at this small diameter.
PSD253
25mm silicon lined flexible ducting
x 4 metre length As above, but a 4 metre length
PSD254
25mm neoprene lined flexible ducting x 2 metre length
PSD255
25mm neoprene lined flexible ducting x 4 metre length
50mm and 75mm Reinforced Ducting
100% PVC film wall with galvanised steel protective binding spiral.
-20C to +80C temperature range
Compressible 1:6
0.4 kg weight per metre (50mm), 0.5kg weight per metre (75mm)
Bend radius: 30mm for 50mm dia, 45mm for 75mm dia
Each 50mm and 75mm hose comes complete with a stepped hose clip included allowing secure attachment to ducting adaptor.
Spare clips are available.
NB Hose clips (shown below) included with 75mm and 50mm hoses keep the hose attached to the ducting adaptor which is ordered separately.
Ducting hose clips for 50mm and 75mm ducting only
50mm Ducting
PSD50
50mm diameter ducting adaptor
PSD501
50mm diameter reinforced flexible ducting x 10 metre length, with hose clip (ducting adaptor required)
75mm Ducting
PSD75
75mm diameter ducting adaptor
PSD751
75mm diameter reinforced flexible ducting x 10 metre length, with hose clip (ducting adaptor required)
PS802: Custom Transit / Storage Case for Dragon Smoke
Machine With hinged lid.
Weatherproof cover for Dragon Smoke Machine Allows use of ducting adaptor still, and comes
with transparent window for control panel.
PS325: PS
Centrifugal Blower Fan
Continuously rated fan suitable for use with the PS27 / PS27ER
to blow fog through ducting / pipework. Output can be ducted
using 75mm diameter hose above. 240V/110V. ~4 week lead time.
Smoke
Filtration Units filter smokey
air effectively extracting all smoke in situations where venting
the smoke to the outside is not possible.
We can build the Dragon with a black chassis for special effects applications.
The above shows this with the timer remote control option.

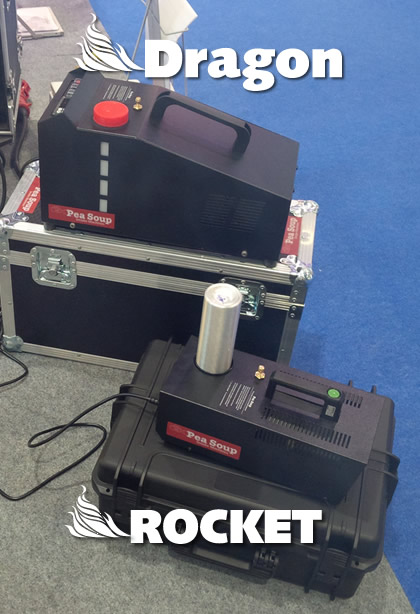

The Dragon sitting on its flight case, top, and its brother the Rocket below
